On June 21, 2001, some members of OVEC and Coal River Mountain Watch toured the massive 645 acre Brushy Fork coal slurry impoundment.

Brushy Fork Slurry Impoundment, operated by Marfolk Coal, a subsidiary of Massey Energy, is located in extreme westernmost Raleigh County, West Virginia. Brushy Fork is a tributary of Little Marsh Fork, that flows into Marsh Fork, comprising part of the headwaters of the Coal River upstream of Whitesville.

For permission to use photos(non-profit groups, school, students, low-income organization) or to purchase one-time photo-use rights (for-profit groups) contact vivian@ohvec.org. Original digital images may be available on request.

Click any image to view at full size

: The Brushy Fork Slurry Lake – photo taken from the crest of the dam.

: Upstream face of waste rock dam in foreground, strip bench in background. Allowing mining to continue, including blasting to remove overburden was …

: Denuded area of the forest represents the planned area of expansion on the Brushy Fork permit, where eventually Marfork wants to deposit additional…

: Slurry line, that brings slurry process wastewater with many fine grained materials from the prep plant and coal cleaning efforts, depositing the s…

: Coarse waste rock is used to construct the dam. At Brushy Fork over 8 million tons of waste rock were generated in 2000, to produce less than 8 mil…

: Waste rock conveyor belt junction.

: Conveyor belts bring waste rock up to the top of the dam crest, where it spills into stockpiles. Dozers then take the waste rock, spread, and (supp…

: Preparing for compaction of waste rock in the dam, where ,of course, dozers will meticulously compact the waste rock in uniform 2 -foot lifts (laye…

: Area of the pond where water is decanted off the top, with booms to assist in blocking suspended materials or floating oils from the water that is …

: No coarse rock is supposed to be added to the slurry pond, as fine grains are supposed to settle uniformly to the bottom

: One branch of the slurry lake. No vegetation is supposed to be included in the slurry pond, as it could later decompose and leave voids which coul…

: Surface mining just above the upstream extent of BF slurry pond, where blasting of overburden occurs as needed, despite the presence of underground…

: Large truck dumping waste rock directly into the slurry pond, with larger and heavier rocks quickly scurrying down the slope to join the slurry in …

: Sump pump used to withdraw water from top of sediment ponds, then discharge it into downstream pond while the upper pond is dredged.

: Coal that has been crushed and washed, ready for loading.

: Coal being loaded for delivery

: Sediment Control Pond, not a holding pond. These are supposed to be designed to contain sediment from all upstream runoff.

: Sediment control pond.

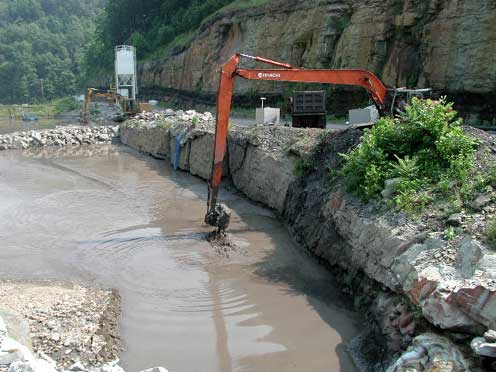

: Dredging of sediment from sediment control ponds is required as the ponds frequently fill in. Dredging should be performed on frequent basis to kee…

: Two sediment ponds in series, combined are less than 2 acres in size, very narrow and relatively shallow. These 2 ponds are supposed to contain sed…

: Left to right: Paul McCombs, chief engineer for Marfolk at the Brushy Fork site, attorney Maryanne Maul, OVEC’s Rick Eades, Judy Bonds and Freda W…
